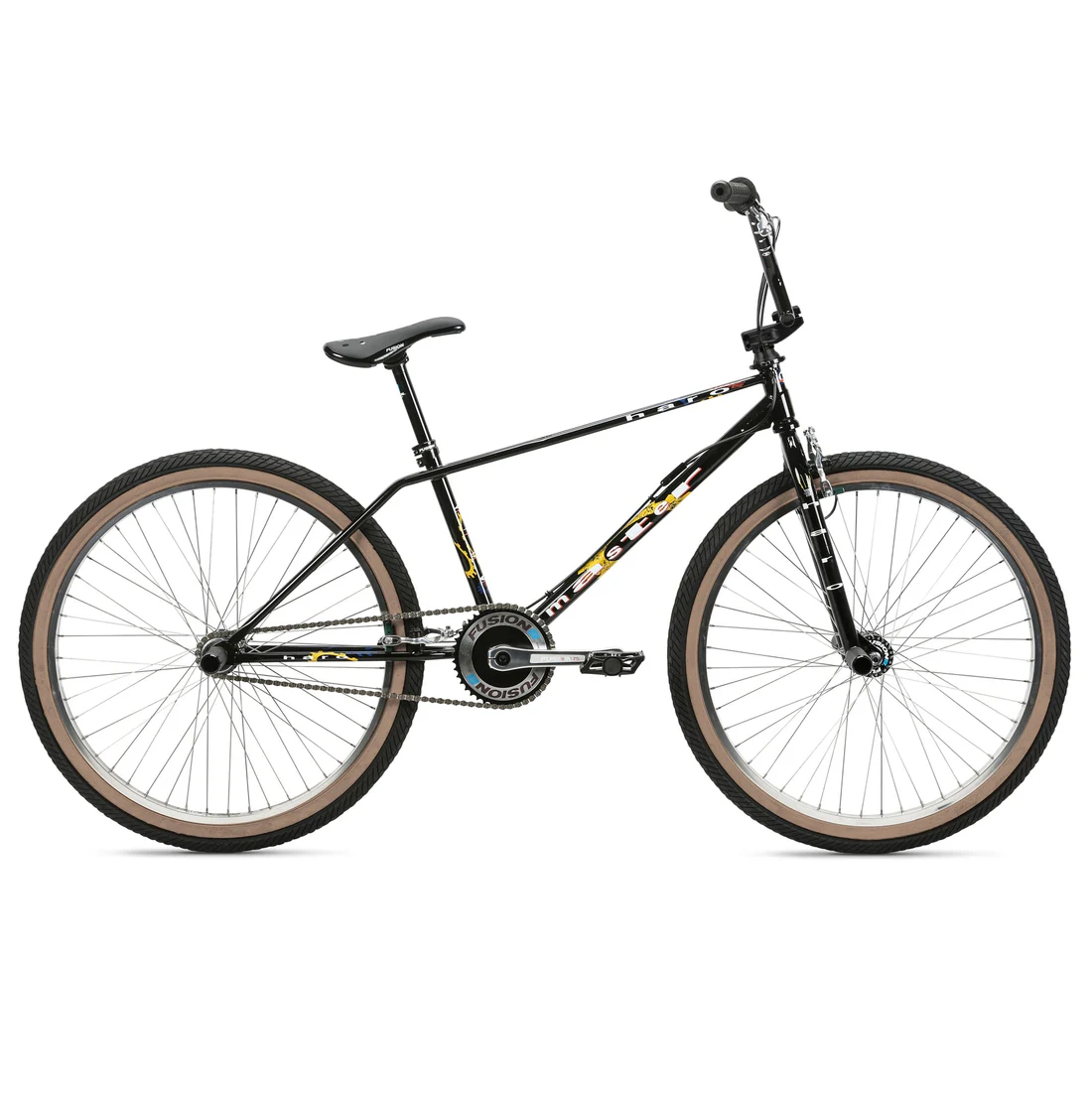

BMX HARO Lineage Ground Master
Couleur : Black
Le BMX HARO Lineage Ground Master est le grand frère de la version 20″ avec quelques modifications pour le garder serré et fidèle même à plus grande échelle. Vous obtenez le cadre à double tube supérieur en chromoly inspiré de 1992, la fourche en chromoly traitée thermiquement, le guidon protège-genoux et les pièces Fusion partout.
Ci-dessous, nous roulons de manière stable sur des jantes en alliage à double paroi qui sont lacées sur des moyeux scellés à bride haute et équipées de pneus Kenda Kranium 26 x 2,25″. Des repose-pieds lisses de plus grand diamètre protègent vos pieds. Freins de roue arrière montés sur base de chaîne et avant acheminés en interne. Les freins de roue garantissent que vous gardez le contrôle du vélo même lorsque vous ne l’avez pas. « Les trucs sont pour les enfants » ne s’applique pas au Ground Master 26″.
Caractéristiques techniques :
| Frame | Lineage Master Bashguard 26″ frame – 22.5″ full chromoly; internal h/t crmo – with removable rotor tab mounting holes; removable brake mounts. |
|---|---|
| Fork | Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8″ axle; cr-mo steerer; tapered fluted legs |
| Colors | Black |
| Cranks | Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle |
| Bottom Bracket | Sealed MID BB |
| Sprocket | Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2″ x 1/8″ x 41t ; solid ring w/ machined teeth, included sprocket adapter |
| Gearing | 41/17 |
| Pedals | Haro Fusion; alloy pedal body; chromoly axle |
| Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
| Tires | Kinda Kranium tire; 26×2.25; 60 max psi |
| Front Hub | 36H alloy hub body; 3/8″ chromoly straight axle; 2 sealed bearings |
| Rear Hub | Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts |
| Rims | Haro Lineage 26×1.75″; 36H (double wall welded joint) |
| Brake | Dia-Compe fs996 « hombre » u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
| Brake Lever | Dia-Compe « tech-77 » lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
| Rotor | Teflon bearing gyro – full cnc 6061 t6 included a-plate |
| Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |
| Handlebar | Lineage kneesaver bar 8.5″; 100% heat treated; multi-butted |
| Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm |
| Headset | Sealed Integrated, 1 1/8″ |
| Seat | Haro Fusion slim stealth pivotal seat |
| Seat Post | Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
| Seat Post Clamp | Haro Fusion twintorc clamp; alloy 6061 |
| Pegs | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
